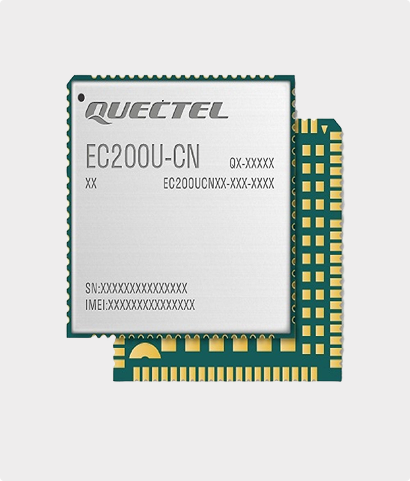

EC200UCNAC-N05-SNNSA
Out of stock
Quectel EC200U series is a series of the latest LTE Cat 1 module optimized specially for M2M and IoT applications. It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EC200U series is compatible with Quectel multi-mode LTE Standard EC25 series/EC21 series/ EC20 R2.1/ EC20-CN/EC200T series/EC200S series/EC25-G/EC21-G and UMTS/HSPA+ UC200T series, ensuring that it can easily migrate from 3G to 4G network. EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
₹675.00
Out of stock
- EC200UCNAC-N05-SNNSA – 4G – LTE Cat1 IoT Module
- a. Category – LTE Family
- Remote Monitoring, Data Logger, VTS, OBD, Gateway.
- Speed: Max – 10 Mbps (DL) / Max 5 Mbps (UL)
- No. of Pins: 144 pins, 80 LCC pins and 64 LGA pins.
- Supply Voltage: 3.3–4.3 V DC, 3.8 V DC Typical
- Dimension: 28.0 × 31.0 × 2.4 mm
- Weight: Approx. 4.1g
- Network – LTE Cat1 / 2G
- Regulatory : SRRC/ NAL/ CCC
- Extended Temperature Range: -40°C ~ +85°C
- Bands :
LTE FDD: B1/B3/B5/B8/
LTE TDD: B34/B38/B39/B40/B41
GSM: B3/B8 - Supply Source : V-DC
b. Sub-Category – EC200U Series
